Six years of silence.
Well, not really. Anyone who knows me will immediately refute the notion that I'm ever quiet. But I very obviously abandoned blogging with any degree of regularity after The Marathon. Maybe we'll do that again. Maybe not. These days, where I've swapped the abdominal 6-pack for the one you get in the adult beverage isle at the supermarket, it's not in the foreseeable future.
#SpoilerAlert This is no longer a fitness blog.
But, for the same reason I started this back in 2011 (I'll have to go back and check that, but I think it was 2011), I need a bit of accountability to focus me from the SQUIRREL! distractions that plague the ADD afflicted.
Anyone who's gracious enough to be following this blog also follows me elsewhere on social media and knows that I make stuff. Wood Stuff. Guitars. Mandolins. Ukuleles. Coasters. (yeah, that last one's not so wowing, but way more practical). I'm also a cheap-ass, Scottish-heritage guy who couldn't turn down a price "oops!" from stewmac.com on a Les Paul Jr. guitar kit (or two). Cheap enough that I was willing to risk turning a purchase into firewood for the chance at making a $300 kit (on sale for $150 (on "price-oops" close-out for, FREE, given that a $75 finishing kits was included)) awesome.
Okay, you don't care about the deal. I get it. That's not the point. I was halfway into potentially ruining this perfectly good guitar kit with power tools when Laura hollers down in the basement that Kobe Bryant died in a helicopter crash.
Well... Damn.
I grew up with Jordan. I will stubbornly argue that will never be another Jordan. No offense to Lebron, but Kobe is about as close you're going to get to that benchmark of "our" generation. Regardless of your opinion in the sport and his position in its royals, it was too soon for him to die.
So today, my next guitar has a name and Kobe is going to be fantastic.
Because what else would he be?
Push the Envelope. Watch it Bend.
This is my fitness related blog. I created this on the day I start training for my first marathon, just a few weeks short of a year after I found myself in the worst shape of my life. Something had to change. Me. So I did. And I am. I want to see what this 1974 vintage body is capable of. Hence, my Mantra (courtesy of Tool): Push the envelope. Watch it Bend.
Sunday, January 26, 2020
Wednesday, February 19, 2014
Pickup Lines
Of everything that goes into an Electric Guitar,
the component that ultimately gives the instrument its voice is the pickups.
The controls (volume/tone, switches), strings, construction, and amp (as well
as the musician) all matter to different extents, but for the guitar itself,
the pickups are where, “You get what you pay for,” truly comes into play in the
marketplace. One of the reasons I wanted
to take on the project was to see if I could actually make my own pickups. As
the perpetual scientist, the idea that I could potentially turn out a set of
custom-wound pickups for my Strat (or Tele… or LP Jr… or Firebird… or, well,
you get the drift!), and then make a change and wind another set, maybe using
alnico II instead of alnico V slugs, winding with vintage-spec wire vs. modern
spec, winding with 43 gauge vs. 42 gauge, 10% over/under winding, etc. etc.
etc. is stupefyingly attractive.
Part of my learning process is getting to
understand as much as possible of the HOW with regard to the construction and
electronics. Beyond the very basics of
electronics, I am out of my element. People considerably smarter than me
figured this all out long, long ago and I’m not going to start reinventing the
wheel, but I hope to learn enough to be able to make informed decisions about
my pickups. At a very high level, a guitar pickup is made from a fiber (or, in
cheap guitars, plastic) base & top (called the flatwork) through which metal
slugs (called poles) are inserted to make a bobbin about ¾” tall and 2 ½” wide.
The tops of these poles are what you see when poking out of the top of an
electric guitar. In most cases, there is a cosmetic plastic cover with holes
for the poles that covers the flatwork. To turn the bobbin into a pickup, there
is nearly a mile (4000’) of extremely fine gauge wire (42 or 43 AWG, about the
size of a human hair) wrapped around and around and around the bobbin somewhere
in the neighborhood of 8000 times.
Typically when you’re wiring something small &
local, you can use a multimeter to check for resistance (ohms) on the line. In
most circuits that are simply a point-to-point wire (like running a line from you’re
Home Theatre Receiver to a speaker at the back of the room), the speaker wire
is relatively big and the run is short, giving a resistance very close to zero.
Pickups, on the other hand, are a very fine gauge wire run for an extremely
long distance. On this scale, the resistance is measurable and for a single-coil
(one wound bobbin) pickup like you see in a Stratocaster (or Telecaster) has a
measurable resistance of about 6-7 thousand ohms. This is a meaningless number
to the lay person, but the resistance of the pickup is one of the key factors
influencing its tonal qualities.
Having a really long wire wrapped around the poles
doesn’t do anything… until the poles are magnetized. Once the pole pieces are
energized to become magnetized, all the components necessary to make noise are
in place. This is the point for me where ‘science’ becomes ‘magic.’ Plucking an
electric guitar string over a pickup causes a disturbance in the magnetic field
of the pickup which is picked up by the windings, transmitted through the
controls and eventually to the amplifier and voila! Sound! (or magic).
Awful, horrible Strat-copy body that's barely worthy of being gutted |
My project guitar won’t be ready for electronics
for several months. I expect there’s going to be some trial & error in the
whole winding process. If it turns out that I really CAN’T make it work, I’d
like to know now so that I can start budgeting for pickups (and likely
significantly altering the long-term guitar building plan). My plan for the next few months is to see if
I can snag a cheap ($20) Squire (or similar) Strat-style guitar as a test bed
and try my hand at winding a few pickguards worth of pickups using a few
different options, both to experiment with the tonal differences as well as
seeing if I can actually make something that sounds good.
I also have a “Standard” Strat that I bought a
decade ago. I swapped out the stock bottom-tier electronics with what
(according to the eBay listing) were some pretty solid Fender Custom Shop Texas
Specials. At the very least, they sounded considerably better (and I now have
the tools & knowledge to actually make a reasonable assessment if that’s actually
what they are!) That entire pickguard assembly is going to stay intact. It
sounds great and there’s no reason to mess with it! That said, what I have really always wanted
is a Strat with pickups that come as close as possible to Mark Knopfler’s Red
strat that he played on the early Dire Straits albums. Based on some basic
research, it’s likely that the pickups are from a Strat made somewhere between
1957 and 1962. So my interim project is to
-
Strip the neck pickups out of the Standard
Strat’s pickguard that’s in the basement, rip it apart, and try to rebuild it
to roughly the same spec as the middle pickup and see how they compare
(understanding that there is some difference solely based on the position of
the position of the pickup)
-
If the neck pickup works, try a repeat on
another, possibly making a change in the wire or magnets.
-
If the middle pickup works, I’ll try something
different with the bridge, possibly either an underwind to (hopefully)
accentuate the bark of the treble *or* overwind to (hopefully) reign in the
quackiness of the Strat bridge pickup and round out the tone a little more.
Les Paul Jr. Template over a Cherry/book-matched-Maple/Cherry body |
Once I finish the rebuild of the Standard
Strat pickguard, the next step is to move on to lovingly build a set of replica
’59 Fender Strat Vintage pickups and a new pickguard before moving on to wind
the pickups for the Telecaster and the Les Paul Jr. project that I’ve started.
Of course, then I’ll have one or two more pickguards than I
have Strats. Whatever shall I do then…
Saturday, February 15, 2014
Pining Away (or Sticking Your Neck Out)
One of the challenges of building a guitar from the
ground up is that there are many, many opportunities to make one small mistake
that turns many hour s of work on an instrument into many hours of work on firewood. Building and shaping the outline of the body
has been an exciting and enjoyable process, but it’s also the one part with a
HUGE margin of error. I could cut one of the horns off and bore a 2” hole n
ear the tail and it wouldn’t make a bit of difference in how it sounds through the amp when it’s done. But if the neck pocket is too big, the neck joint will be sloppy. If I carve too much of the neck, it may not hold up to the tension of being strung. There are some things like this where there is literally one shot to get it right and I really don’t want my first time doing some of these things to be with the wood that SHOULD be the final piece.
ear the tail and it wouldn’t make a bit of difference in how it sounds through the amp when it’s done. But if the neck pocket is too big, the neck joint will be sloppy. If I carve too much of the neck, it may not hold up to the tension of being strung. There are some things like this where there is literally one shot to get it right and I really don’t want my first time doing some of these things to be with the wood that SHOULD be the final piece.
This project started out on a recommendation from
one of my mentors to NOT use top-quality lumber for the first pass, but to take
my first run using a cheaper hardwood, such as Poplar (which I did). Taking
that to the next step, even though my $13 Poplar body isn’t made from Walnut or
Mahogany or something ridiculously expensive, I have quite a few hours into
taking it from a slab to a guitar body and I’d rather play it around a bonfire
this summer than fuel the bonfire with it.
So I made a decision to hack together some pine boards and make an
initial pass as constructing the neck and machining the pockets for the
pickups, control cavity, and neck pocket.
Gluing and Clamping the pine neck. |
Rough outline, half-shaped. |
But what do I actually DO with this? I can’t chop the headstock and heel off to trace the profile and I can’t make a sanding jig since the profile changes as you move down the neck. About all you can do is mark the depth of the vertical from the fretboard (basically the bottom of word “Reissue” in the images, above), cut the neck to a its depth (taking into account the fretboard thickness), and just start hacking away at the edges with rough wood working tools to get down to the point where finer & finer tools can be used to smooth the neck to a general profile. The nice thing about working with pine is that this went very quickly. The lousy thing about working with pine is that it’s SO soft that it rips and tears easily, but it does offer a lesson in taking the time to do the work at the pace the wood wants to work at and not try to force the pace.
Drawn outlines of cavities. |
I
definitely went into the Pine Neck project with a lot of questions and came out
with a quite a few answers, or at least directions. The Pine Body project was
more straight-forward and there was less figuring out to do. Coming out of this exercise, the key pieces
of learning is that the neck is likely going to be the part of the project
where I can’t realistically get a quality product with the tools at my
disposal, so I’ll be spending time down with my mentors making the neck. I’ll also need to do the bulk of the body
routing/drilling work there as well.
Although I could easily do the cavity drilling with the Ryobi, getting
the neck pocket right is going to be a critical part of the construction and
something that would be unwise to attempt myself.
Thursday, February 6, 2014
Sourcing the Parts
My typical approach to, um, just about everything, is to figure out what, “Acceptable,” is and then go a level or three beyond that. Especially when it comes to anything that’s manufactured, there is more junk than ever in the marketplace. At least in America, people seem to be willing to trade cheap-in-price for poor workmanship and product longevity. Yes, that widget was only $9.37 at Wal*Mart, but the $18.99 one you put down probably would have lasted until you died, but you’ll be back at Wal*Mart in another 2-4 years to replace that cheap widget (after griping for those 2-4 years about how lousy it was). There are few things in this world that don’t abide by the saying, “You get what you pay for,” at least at the middle-class level. There is an obvious leveling of the QPR (Quality:Price Ratio) as you approach Luxury items, but as a general rule for the 99% who are reading this, buying up a level (or three) of quality is a wise, long-term investment.
Having said that, one of my challenges for this project was to keep the budget minimal. As much as I would love to drop 18:1 Gold Grover Rotomatic tuners ($160ish), Vintage Fralin pickups ($200ish), an acoustic-enabled bridge (another easy $200), and any number of other high-end parts, I don’t have remotely close to the budget to bleed $800 toward one instrument, let alone whatever the costs would be for the 3-4 I intend to have either built or participated in the build of at the end of this year. So what to do?
I have been using a combination of Stewart-MacDonald and Allparts as my baseline source for parts to get an idea of what the common luthier has access to get a ballpark idea for brands, styles, and prices. Predictably, eBay has been an extremely good source of (so far) quality parts at excellent prices. In several cases, I’ve been able to purchase directly from an American small business and have correspondence with the proprietor about my project and get some sage advice for incorporating their product into my design.
Another somewhat unlikely source for parts comes from Craigslist and Freecycle. I have acquired two acoustic guitars from Freecycle.
- One is a Jasmine (Takamine’s entry-level) ¾ sized Classical Style guitar that had a snapped headstock (which I easily, if crudely, glued back together to make a perfectly playable instrument). This gives the girls something they can play with as they graduate from the awful kids guitar I bought them a few years ago. Cost to me: $0.00
- The other is so poorly made (or refurbished) that there are no identifying marks on it. The value point here is potentially some tuners for the Ukulele project and a truss rod for a guitar neck later on. There may be some use for the back as the top of a Ukulele, but everything else is so bottom-drawer that the value with this guitar will be solely tearing it apart to see how an Acoustic is put together. Cost to me: $0.00
Blank Headstock |
A very unusual adjustable acoustic saddle/bridge. |
Likely will cut one tuner off each side and use the tuners on a Uke. |
Quality abounds! Laminate top and a gorgeous ebony paint job on a clearly-not-ebony fretboard. No markings inside the guitar either. Must be the company that made it didn't want to be identified!\ |
...and why not a painted saddle, too? Lifting off the soundboard, too. I don't think there's enough adjustment in the screws to compensate for that! |
My best find to date has been a Craigslist purchase on my last Anaheim trip. I found someone offering a pretty thoroughly thrashed Ibanez electric guitar for $50. The neck was broken, the electronics were compromised, and the body was pretty well beaten up. I offered $20, he countered with $30. When we met to swap cash for product, we started chatting and it turned out he had a project idea for the body (which was essentially useless to me) and my main want was the tuners. So we took the neck off, I gave him $15, and walked away with 6 tuners, a fretted Rosewood fretboard, a truss rod, and a template for the neck pocket & heel (somewhere in the neighborhood of $80- $100 in project materials). The extra bonus of getting a broken neck is that the whole thing easily came apart and fit in the suitcase for the trip home!
Yeah, that's going to affect the playability. |
The fretboard was clearly glued down, but I'm pretty sure the headstock-to-neck joint was simply a pressure-fit. |
Another view of the break. |
Wednesday, February 5, 2014
Holy Poplar!
Note: There will be a handful of posts coming to catch up on the project. Rather than blurt them all out at once, I'll post one every few days until the blog is caught up with the project (at which point I'll go back to neglecting my readers).
The PROPER way to cut a body from a block of wood is to use a band-saw. I don’t have one of those, so Plan A was, “Use a coping saw to cut the perimeter of the Telecaster.” Plan A was stupid and lasted about 2” into the process.
Not only would it have taken an insane amount of time, a coping saw (at least the one I have) is not intended to cut through and inch and half of hardwood and was making wandering cuts as the blade flexed trying to get through the block. After sawing in to the outline, I realized I need to make about a 45 degree turn to start cutting the perimeter. The problem was that the saw/blade really did NOT want to make that turn, so I decided I’d drill a hole that would allow me to easily turn the blade and get on the right line. What started as a way to make the turn from cutting in to the guitar to cutting the perimeter became the primary “cutting” process for the perimeter. The drill press not only ensured I stayed on track around the perimeter, but it also kept the sides perfectly vertical, something that was NOT going to happen with the coping saw.
Starting to cut the perimeter. |
Most of the way cut out! |
One of the first cast-off pieces. |
Coping saw work complete. |
Very rough edge to start with. |
From the VERY rough outline, I used a rough wood rasp to get down close to the final dimension and then used a home-made drum sander in the drill press to give most the guitar its final smoothed shape. A little bit of work remains in the tighter spaces that I couldn't reach with the larger-radius drum sander, but those can be hit either with a dremel, hand-sanded, or sanded with a smaller drum.
Glue & clamp some 60-grit on and VOILA! A sanding drum! |
Homemade sanding drum using disks cut with a hole saw, a length of threaded rod, and a few washers & bolts (all things just lying around in the workshop). |
Before sanding |
After sanding. |
Tuesday, January 21, 2014
Building the Body
I've realized that approach to this Telecaster project is very similar to my approach to brewing beer. When I brew, I always have a lofty vision of what I want from the final product. However, there a lot of things that can go wrong on Brew Day (and beyond) that affect the final product, often in a less-than-desired way. So when I start a new brew, my A#1 goal is "make drinkable beer." Goal #2 is, "make a beer I want to drink." Somewhere further down the line is, "Final Product = Perfect Realization of Vision." Lofty goals are great to have, but there something to be said for being able to be satisfied with a less-than-perfect outcome.
With the idea that this guitar build is a "learning project," my primary "build a guitar" goal (other than to learn so that the next project is better) is to keep the expense as low as possible. A lot can be learned without spending a mint. The secondary goal is having a playable instrument. I know I have the ability to make a great sounding, great playing electric guitar using parts someone else made (I've made two so far), but I really don't know what goes in to the whole process of making/routing the body or winding the pickups. The more you can do/make yourself, the more the final product is your own and the more you learn about how it's really made.
I got my first glimpse at reality when I took the rough hunk of Poplar into the cellar and started working with it. I haven't done a lot of wood working, but I've done enough to know that working with power tools is a lot like approaching a strange dog. As much as you might be a little bit afraid, you need to be bold, confident and decisive, yet fluid in your actions. Being jumpy and tentative typically doesn't end well in either case.
The workup on the hunk of Poplar went down like this:
- cut the 36" length into two 18" lengths.
- With the crown up, trim about 1/4" off one side to get a flat edge.
- Flip the board around and cut the other length to get a total board width of 7" (finished width needs to be 6 3/8")
- Now that I have [what should be] two parallel surfaces, I stood the board on its edge, cranked the table saw up to its 3" max height and ripped the length of the board, flipped it, and ran it again leaving about a 1" piece in the middle to saw by hand. This was the potential dog-bite moment. The table saw I have really isn't powerful enough for what I was asking of it (I tripped its internal breaker twice and had to shut the saw down mid-cut on each pass as the blade started binding), so there was an element of unpredictability as the wood was being fed into the blade. It definitely didn't go perfectly, but it did what it needed to do!
The finished product was definitely rough and I wasted a good 1/4" of material with my method vs. the preferred "take it the luthiers' shop and run it through the band saw" approach. The table saw work took a while, but it worked. The hand sawing of the remaining wood strip in the middle took a while as well, but probably no more than 10-15 minutes per piece.
The next step for the body was a trip to the Ennis & Lubold workshop in Randolph to make the rough-cut, crowned pieces into perfect rectangles in profile so that they could be glued into a solid guitar-sized block. The first step was to run the boards through a wide surface planer. This removed all of the junk left over from the division of the board and stripped away the crowning of the wood. A similar process was done on the edges to ensure that the edges were perfectly straight for a flush glue joint. After some hemming and hawing about how to put the pieces together, the sides were matched glued. Once they had set, they were then glued together to each other resulting in a pretty striking (for a $13 chunk of Poplar) bookmatched pattern.

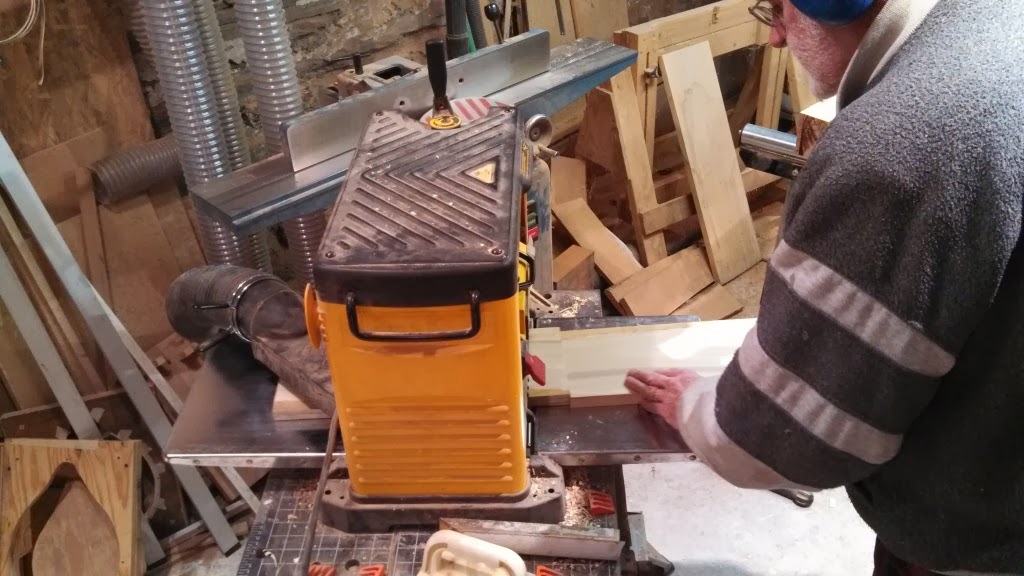

Planing the rough boards. |
Applying the glue. |
Thursday, January 2, 2014
New direction for 2014
I've started, but not finished, a few blog entries since my last post at the end of 2012. For the past several years, each January started with me laying out some personal fitness goals, whether it be a Marathon (2011), the Spartan Beast (2012), or trying a ketogenic diet for the 2013 Spartan Beast and Leaf Peepers Half Marathon.
For 2014, I really didn't feel compelled to tackle any new major fitness challenges. I'm getting a little burned out from having my foot on the gas for the past 4 years. Health and fitness won't go away, but I'm not planning to TRAIN for anything major in 2014.
So, much like I used this space to record my path to my first (and so far, only) marathon, I'm going to shift gears in the TOPIC of this blog, but still attempt to maintain the "Push the Envelope. Watch it Bend." philosophy. I have decided to build, from the ground up, a Telecaster (electric guitar). Some portions, such as building and fretting the neck, will require assistance of friends & family (namely Ennis & Lubold Luthiers), but as much as possible I'm going to use tools I have on-hand to turn some raw hunks of wood into a playable instrument at least equal to the tonal quality and playablity level of a mid-level, factory-made Fender. I will do all the wiring myself to the extent that I intend to build and wind my own pick-ups (including building my own pick-up winder).
There will certainly be mistakes made along the way. I have limited experience working with wood, so there will be a lot of learning happening in a short period of time. I have built from off-the-shelf parts, wired, and lacquered two electric guitars, and learned a LOT in the process of doing that. There will be another partnership-project with Ennis & Lubold that I'll announce soon that will allow my to cut my teeth on an acoustic-instrument project in parallel with the Telecaster.
The Tele project started this afternoon with the $13.80 purchase of a 2" x 8" x 36" block of Poplar that will be cut into two 18" pieces, then cut along the long edge to have a bookmatched top & back. The Poplar isn't beautifully figured and the easy way out would be to just join the 18" blocks, but where's the fun in that? Even though I fully expect to finish the guitar in paint (vs. stained/natural), a large part of this project is LEARNING, so right outta the gate I'm going to learn how to (or how NOT to) bookmatch a solid-body guitar.
For 2014, I really didn't feel compelled to tackle any new major fitness challenges. I'm getting a little burned out from having my foot on the gas for the past 4 years. Health and fitness won't go away, but I'm not planning to TRAIN for anything major in 2014.
So, much like I used this space to record my path to my first (and so far, only) marathon, I'm going to shift gears in the TOPIC of this blog, but still attempt to maintain the "Push the Envelope. Watch it Bend." philosophy. I have decided to build, from the ground up, a Telecaster (electric guitar). Some portions, such as building and fretting the neck, will require assistance of friends & family (namely Ennis & Lubold Luthiers), but as much as possible I'm going to use tools I have on-hand to turn some raw hunks of wood into a playable instrument at least equal to the tonal quality and playablity level of a mid-level, factory-made Fender. I will do all the wiring myself to the extent that I intend to build and wind my own pick-ups (including building my own pick-up winder).
There will certainly be mistakes made along the way. I have limited experience working with wood, so there will be a lot of learning happening in a short period of time. I have built from off-the-shelf parts, wired, and lacquered two electric guitars, and learned a LOT in the process of doing that. There will be another partnership-project with Ennis & Lubold that I'll announce soon that will allow my to cut my teeth on an acoustic-instrument project in parallel with the Telecaster.
The Tele project started this afternoon with the $13.80 purchase of a 2" x 8" x 36" block of Poplar that will be cut into two 18" pieces, then cut along the long edge to have a bookmatched top & back. The Poplar isn't beautifully figured and the easy way out would be to just join the 18" blocks, but where's the fun in that? Even though I fully expect to finish the guitar in paint (vs. stained/natural), a large part of this project is LEARNING, so right outta the gate I'm going to learn how to (or how NOT to) bookmatch a solid-body guitar.
